1.5 HP SCM-34ST Pump Stailess Steel

1.5 HP SCM-34ST Pump Stailess Steel

Specifications

• Stainless steel pump body
• Used in drinking water etc field
• 100% copper wire

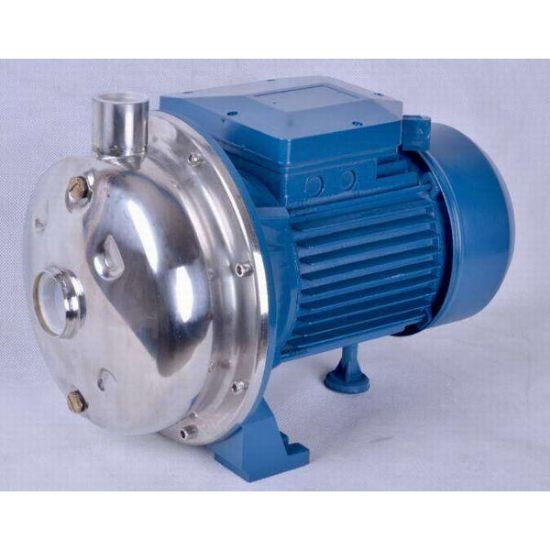

SCM-ST-34ST series STAINLESS STEEL centrifugal pumps are single stage, high efficient electric pumps, consisted of a miniature motor and a single impeller centrifugal pump.

The pump and the impeller are made of stainless steel, make it better and ideal for pumping drinking water.
They have a good performance in Big Capacity and High Head.

APPLICATION

For the correct functioning of the pump, use clean water, or non-aggressive liquids charged with small solid impurities.
To be used in flow irrigation system in gardening, agriculture and industrial fittings..

OPERATING CONDITIONS
Liquid temperature up to 60oC;
Ambient temperature up to 40oC;
Continuous duty

CONSTRUCTION

• Pump body: Stainless Steel
• Impeller: Stainless Steel
• Mechanical Seal: Cabon/Ceramic/Stainless Steel
• MOTOR Single Phase Heavy Duty Continuous Work
• Motor Housing : Aluminium
• Shaft: Stainless Steel
• Insulation Class B/F
• Protection Class: IP44/IP54
• Cooling: External Ventilation
• Single phase/Three phase/50Hz/60Hz
• Surface Disposal: By Painting / Electrophoresis /Spray Model/ Baking Varnish
